Name vehicles 车辆名称: |
加油半挂车 |

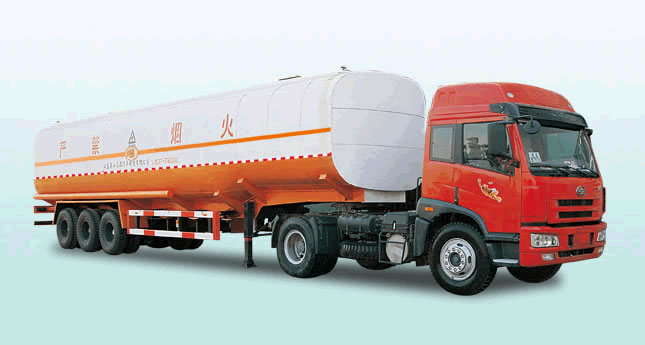

点击查看广科牌YGK9400GJY加油半挂车大图 |
Types of vehicles 车辆类别: |
半挂车 |
Vehicle models 车辆型号: |
YGK9400GJY |
Chinese brands 中文品牌: |
广科牌 |
English brand 英文品牌: |
|
SDRC car instalment Notice 汽车公告批次: |
I8(188) |
Exemption 免检: |
否 |
Dimensions 外型尺寸(长×宽×高)(mm): |
13000×2500×3610 |
Huoxianglanban in size 货厢栏板内尺寸(长×宽×高)(mm): |
12620×2410×1610 |
The total mass 总质量(Kg): |
39600 |
In the quality of the utilization factor 载质量利用系数: |
0 |
Zhengbeizhiliang 整备质量(kg): |
12500 |
Rated contained mass 额定载质量(kg): |
27100 |
Trailer total mass 挂车质量(kg): |
|
Semi-trailer carrying saddles the maximum allowable weight 半挂鞍座质量(kg): |
|
Chajingu / departure angle 接近角/离去角(°): |
/19 |
Suspended before / after hanging 前悬/后悬(mm): |
/1900 |
Wheelbase 轴距(mm): |
7260+1310+1310 |
Axle-load 轴荷: |
24000(并装三轴) |
Shaft number 轴数: |
3 |
Maximum speed 最高车速 (km/h): |
|
Oil Consumption 油耗: |
|
Spring few films 弹簧片数: |
8/8/8,10/10/10 |
Several tire 轮胎数: |
12 |
Tire specifications 轮胎规格: |
11.00-20 12.00-20 |
Before Lunju 前轮距: |
|
After Lunju 后轮距: |
1850/1850/1850 |
To form 转向形式: |
方向盘 |
Starting way 起动方式: |
|
Vin车辆识别代码: |
LVK9GH3G××××××××× |
Based on standard chassis 底盘依据标准: |
|
Others 其它: |
罐体有效容积为42.5 立方米,罐体截面积3.42平方米,罐体外型尺寸长12620毫米,宽2410毫米,高1610毫米,介质为汽油,介质密度700千克/立方米,该车需用并装双轴牵引车牵引。 |
