ZTY系列吊式弹簧减振器为开启式吊架弹簧减振器，是采用钢弹簧与橡胶串联形式绍台隔振降噪元件。通用于各类管道及风机盘管、新风机 组、变风量空调箱、轴流风机等吊装减振。

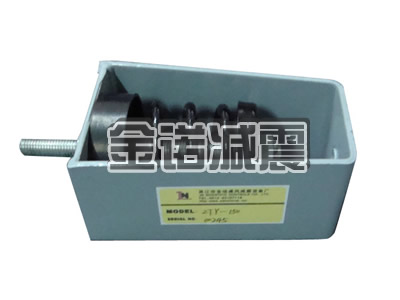

ZTY弹簧吊式减振器产品示意图：
|
|
|
| ZTY弹簧吊式減振器技术参数及外形尺寸表： |
|
型号 |
ZTY-1 |
ZTY-2 |
ZTY-3 |
ZTY-4 |
ZTY-5 |
ZTY-6 |
ZTY-7 |
ZTY-8 |
ZTY-9 |
ZTY-10 |
ZTY-11 |
|
承載范围kg |
10-20 |
15-30 |
20-40 |
26-58 |
40-80 |
60-120 |
80-160 |
110-210 |
140-280 |
160-340 |
200-400 |
|
自振頻率Hz |
2.60-4.80 |
2.60-4.80 |
2.60-4.80 |
3.0-4.90 |
3.0-4.90 |
3.60-5.0 |
3.60-5.0 |
3.50-5.20 |
3.5-5.20 |
3.20-5.0 |
3.20-5.0 |
|
变形范围mm |
5-25 |
5-25 |
5-25 |
5-20 |
5-20 |
5-2 |
5-20 |
5-20 |
5-18 |
5-18 |
5-18 |
|
H mm |
120 |
140 |
160 |
200 |
200 |
200 |
200 |
200 |
240 |
240 |
240 |
|
A mm |
40 |
40 |
40 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
|
h mm |
80 |
80 |
145 |
145 |
145 |
145 |
145 |
145 |
145 |
145 |
145 |
|
螺杆m |
8 |
8 |
10 |
10 |
10 |
12 |
12 |
12 |
14 |
14 |
14 |
|
吊环mm |
16 |
16 |
16 |
22 |
22 |
22 |
22 |
26 |
26 |
26 |
26 | | |
| | |
